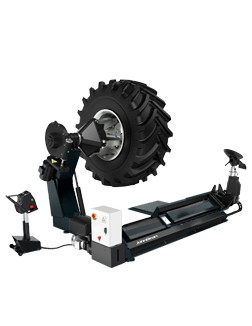

T8058 WL Heavy-Duty Tyre Changer

If you regularly work with heavy-duty machines like off-road vehicles, skidders, commercial trucks, and tractors – the John Bean® T8058 helps make short work of these challenging applications with a set of professional-grade features.

Heavy-duty vehicles have heavy-duty tyres and OTR wheels that can be a challenge to work on without the right machine. The John Bean T8058 is the pinnacle in heavy-duty tyre changing technology and can support wheel assemblies up to 92 inches in maximum diameter; clamping wheels of 58 inches diameter without extension. Powerful hydraulic cylinders drive the mounting tool and the bead breaker. In order to work on wheels without tyres, the self-centring, four-jaw, two-speed chuck can easily be dropped to only 13.78 inches below the carriage. Positioning and rotation of the mounting tool are handled independently and move with ease using hydraulic power. For the most challenging applications that require precision, the John Bean T8058 has you covered.

Versions

T8058 WL (6028216): This version offers radio-controlled operation, automatic operation of mounting tool, preset tool carriage travel, and automatically switches off for energy saving while extending the life of the hydraulic motor and hydraulic oil.

T8058 BA (6028220): Control unit positioned on a swing arm

T8058 B (6028218): Wired controlled console operation

Features

MOBILE CONTROL UNIT

Wired remote control console allows one technician to safely monitor all tyre changing operations.

EXTREMELY WIDE CLAMPING RANGE

Clamping range for rims of 14” to 58” without extensions; long jaws accommodate rims of high offset.

ADJUSTABLE MOUNTING TOOL

The adjustable mount/demount with bead-breaker disk and lever tool rotates 180 degrees to work on both sides of the tyre.

PRESET TOOL CARRIAGE

The mount/demount tool travels from right to left of the tyre for bead-breaking and mount/demount operation.

ADDITIONAL FEATURES

NON-RETURN VALVE

A non-return valve prevents the chuck from opening in case of a sudden hydraulic pressure drop.

DOWNLOADS

TECH SPECS

Part Number

6028216 – T8058 WL
6028220 – T8058 BA
6028218 – T8058 B

Max Rim Diameter

58″ | 147cm

Max Tyre Width

99″ | 250cm

Max Rim Width

43″ | 110cm

Max Wheel Diameter

99″ | 250cm

Max Wheel Weight

3,200 lbs. | 1,450 kg

Power Supply

400 V 3ph 50 Hz

Dimensions HxWxD

80″x82″x118″ | 202x210x299cm

ACCESSORIES

STANDARD

Wave Plus Tyre Lever
Long Tyre Lever
Standard Tyre Lever: 20" | 50cm
Mounting Clamp

OPTIONAL

Clamp for Light Alloy Rims
Earth Mover Clamp (OTR)
Tubeless Roller
