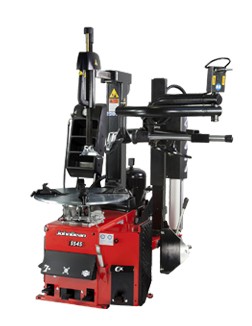

T5545B 2S Plus Tilt-Tower Tyre Changer

Boost productivity with features that allow technicians to get more work done in less time; the John Bean® T5545B 2S Plus is the ideal mix of design and innovation.

Designed around a low-profile cabinet that allows technicians to work on a wide variety of tyres, the John Bean T5545B 2S Plus makes it easier than ever to load heavy tyres. Quickly break beads on all tyre types with the ergonomically located pedal-controlled on-floor bead breaker. Proven tilt-tower design provides maximum clearance, while the exclusive PROspeed™ system automatically measures torque and manages speed during crucial tyre-changing operations. Mounting and demounting is quick and seamless with our pneumatic bead assist system that includes a three-piece design for simple single-operator use.

Self-centring jaws with three manual adjustment positions securely clamp the wheel with the proper setup range, while a top-side bead seater quickly sets the bead with a blast of compressed air. To keep everything needed on hand to get the job done right, the T5545B 2S Plus includes a toolbox with an integrated pressure gauge and four shelves for easy storage of tools and accessories.

Certified by WDK, the T5545B 2S Plus tyre changer is ready to boost your shop’s productivity day after day.

Versions

T5545 2S Plus (EEWH573AE6): This version does not include a bead seater.

T5545 2S (EEWH573AE2): This version does not include a bead seater or the plus accessories kit.

Features

TILT-TOWER

The pneumatic Tilt-Tower post provides maximum clearance for installing the tyre on the turntable.

“PLUS” CONFIGURATION

Certified by WDK, the “Plus” models are equipped with Pneumatic Bead Assist and the “Plus” Accessories Kit to enable the correct mounting and demounting of UHP and run-flat tyres.

LOW-PROFILE CABINET

The lower cabinet height provides increased ergonomics when working with large wheels; the operator handles the bead lever at a lower height and is able to apply more force, reducing effort handling heavy tyres. The lower cabinet also makes it possible to increase the tyre changer capacity to 15-inch tyres instead of the 13-inch tyre width on a standard cabinet.

PROSPEED™

The innovative self-adjusting technology provides the optimum torque and maximizes the rotation speed for safe, efficient operation.

ADDITIONAL FEATURES

ON-FLOOR BEAD BREAKER (PEDAL-OPERATED)

Traditional side-shovel bead breaker with ergonomic pedal-control positioned away from the shovel; the fastest solution for standard, soft sidewall, and high-aspect tyres.

PNEUMATIC BEAD ASSIST

Our three-piece Pneumatic Bead Assist features a top roller, pressing foot, and lifting disk, to make it simple for a single technician to mount and demount low-profile and high-performance tyres.

ADJUSTABLE CLAMPING JAWS

Self-centering nylon-covered clamping jaws protect the wheel and provide a secure grip.

TOP-SIDE BEAD SEATER

This ergonomic hand-held nozzle injects a high-speed blast of air into the tyre to raise the bead and seal the tyre to the rim.

PNEUMATIC VERTICAL ARM

Fast and ergonomic, the pneumatic vertical arm facilitates positioning of the mounting head on all wheels.

WDK CERTIFIED

Our tyre changers are approved and certified according to the strict and rigorous guidelines provided by the prestigious Wirtschaftsverband der deutschen Kautschukindustrie e.V. (WDK), a German Rubber Manufacturers Association leading organization of German manufacturers of tyres and technical elastomers.

TOOL BOX WITH INTEGRATED AIR PRESSURE GAUGE

The tool box provides a fixed storage area with four convenient shelves for tools, valves, and accessories, with an integrated air pressure gauge.

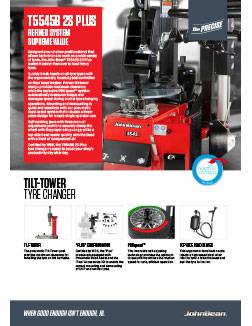

DOWNLOADS

TECH SPECS

Part Number

EEWH573AE9 – T5545B 2S Plus
EEWH573AE6 – T5545 2S Plus
EEWH573AE2 – T5545 2S

Max Rim Diameter

24″ | 61″

Max Tyre Width

15″ | 38cm

Max Rim Width

14″ | 35cm

Max Wheel Diameter

39″ | 100cm

Wheel Lift Capability

154 lbs. | 70 kg

Power Supply

230V 1ph 50-60Hz 16A

Air Pressure Required

116-174 PSI | 8-12 bar

Dimensions HxWxD

64″x66″x76″ | 162x169x192cm

ACCESSORIES

STANDARD

"Plus" Kit
5 kg Lube Bucket Holder
Lube Brush
Wave Plus Tyre Lever
Wave Plus Lever Protector
Plastic Protectors for Mounting Head
Jaw Protectors - Front & Rear
Plastic Tyre Protector
Rim Protection and String
Bead Breaker Blade Protector

optional

Quick Exchange Device with Mounting Head
Bead Breaker Blade for Off-Road Wheels
Wheel Lift
MH Tractor Kit
4-inch Jaws Adaptors for Centre Type Sliding Jaws
Light Truck Adaptor for Centre Type Sliding Jaws
8-inch Motorcycle and ATV Adaptors for Centre Type Sliding Jaws
Motorcycle Adaptor Kit for Centre Type Sliding Jaws, to increase capability from 12" to 26"
Motorcycle Mounting Head
Motorcycle Bead Breaker Blade
Slip-on Shoe
Extension Bead Breaker Arm for Extra-Large Wheels
Roller Board
